Van Plumbing

Van Plumbing System Installation in Lincoln

A complete, leak-tested water system fitted into your van, fresh tank, pump, sink, and drainage ready for the road.

  • Itemised Quote First
  • Reply Within a Day
  • Leak-Tested Before Close-Up
  • Commissioning Walk-Through
Modern compact bathroom in a caravan or motorhome featuring a built-in toilet, sink, and under-sink cabinetry.

Done Right vs Done Cheap

Where van plumbing jobs go wrong, and how to avoid it

Unsecured Pipe Runs

Hoses left loose against the van structure flex with every bump, working clips free and opening joints over weeks of driving.

Clipped & Braced Runs

Every pipe run is fixed to the van structure at regular intervals, and each hosetail connection is double-clipped to resist vibration.

Leaks Found Too Late

A leak discovered after cabinetry is fitted means dismantling the interior, water damage can reach the floor and subframe before it shows.

Test Before Close-Up

A pump pressure check and full joint inspection happen before the floor panel or cabinetry is closed over the pipework.

No Maintenance Access

Pipework buried behind fixed panels with no access points turns a minor pump fault into a full interior strip-out.

Built-In Access Panels

Access panels are fitted above the pump and tank connections so future servicing does not require pulling out the interior.

Freeze Risk Ignored

Pipework routed near the van skin or floor without insulation is vulnerable in cold weather, a frozen line can split and flood the interior.

Freeze-Aware Layout

Cold spots near the van skin and floor are identified at the layout stage, and exposed runs are insulated or repositioned before fitting.

What’s Covered

The components and work included in a van plumbing fit-out

From the tank mounts to the final flow check, here is the scope of a complete van water system installation.

Water Heater Integration

Hot water supply connected to an existing or new heater unit.

Shower Outlet & Drainage

Shower tray, outlet, and waste run added to the system.

DIY Plumbing Support

Guidance and finishing work for a stalled self-build.

Water Systems

A leak-free van water system fitted and tested before the floor goes down

A plumbing fault hidden under a finished floor means pulling out cabinetry to reach it, the leak test happens before anything is closed up.

Request a Quote

The layout stage determines where the fresh water tank and grey water tank sit relative to the sink, the pump, and the van’s centre of gravity. Tank size is matched to how long the van will be used between fill-ups, a weekend trip needs far less capacity than a two-week tour. Pipe runs are mapped to avoid sharp bends, cold spots near the van skin, and areas where vibration will work hose clips loose over time.

Food-grade hose connects the fresh water tank to the 12V pump and on to the sink tap. The waste side runs from the sink trap through a grey water hose to the waste tank, with a vented cap to prevent airlock. Every hosetail connection is double-clipped, and pipe runs are secured to the van structure at regular intervals to prevent movement. Cold Lincolnshire winters make freeze protection for any pipework near the van floor or skin a practical consideration worth addressing at the planning stage.

Before the floor panel or cabinetry is fitted over the pipework, the converter runs a pump pressure check and inspects every joint under load. Access panels are built into the cabinetry above the pump and tank connections so future maintenance does not require dismantling the interior. The itemised quote covers all components, tanks, pump, hose, fittings, and labour, so you know the full cost before work begins.

Why Choose Us

Why Lincoln Van Conversions for your van plumbing fit-out?

Accountability and process that make the difference between a system that works and one that needs redoing.

Written Quote Before Any Work Starts

An itemised quote covers tanks, pump, hose, fittings, and labour, no surprises once work begins.

Local Converter, One Working Day Reply

We arrange a Lincoln-based converter and return a response to every enquiry within one working day.

Full System or Single Fit-Out

We arrange a complete plumbing fit-out, a single component installation, or support for a stalled DIY build.

Commissioning & Handover Walk-Through

The converter commissions the system and walks you through how every part works before you drive away.

No Obligation Until You Approve the Quote

Nothing is ordered or started until you have seen the written, itemised plan and are happy to proceed.

A close-up view of a neatly installed custom electrical system in a vehicle, featuring a blue inverter, multiple fuse boxes, heavy-duty wiring, and red leisure batteries.

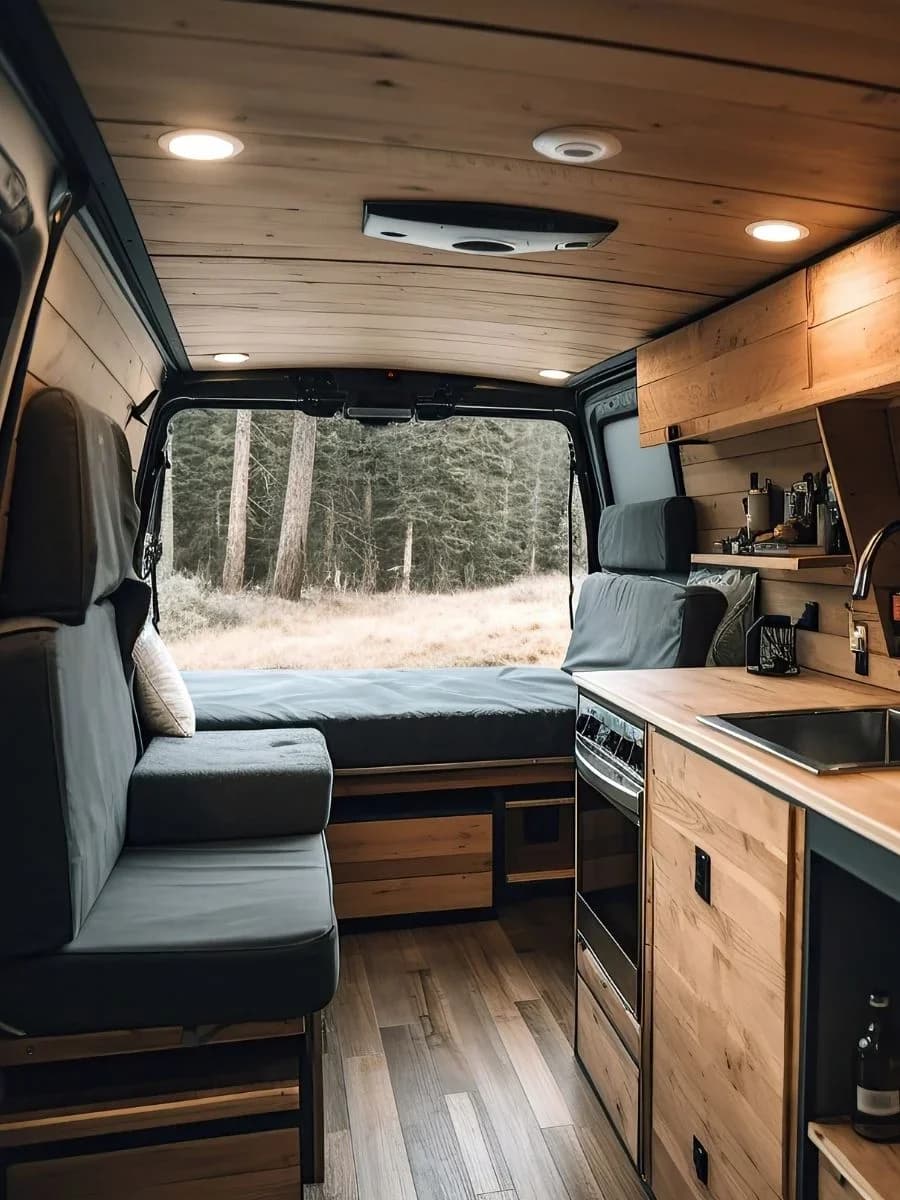

A modern camper van kitchen interior with a wooden countertop, sink, fresh food, and a view of a forest through the open door.

How It Works

From first enquiry to a working water system in three steps

Request a Quote

  1. 01

    Describe Your Van & Needs

    Tell us the van, how you plan to use it, and roughly when you need the work done, we pass the details to a local converter.

  2. 02

    Receive Your Itemised Quote

    The converter reviews the layout options and returns a written quote covering all components, labour, and timeline within one working day.

  3. 03

    Fit, Test & Hand Over

    The converter installs and pressure-tests the system before close-up, then walks you through how everything works at handover.

Pricing Estimates

Typical Van Plumbing System Installation Prices

JobTypical cost
Simple water container setup£250-£600
Sink and tap plumbing£600-£1,200
Fresh and waste water system£1,200-£2,500
Shower plumbing system£2,500-£4,500
These prices are estimates and often vary with the condition, size and scope of each job. Message or call us for a free, no-obligation quote.
See all prices

Common Questions

Questions about van plumbing installation

  • What is included in a van plumbing system installation?

    A full fit-out covers a fresh water tank, grey water tank, 12V pump, food-grade hose, sink, tap, trap, and drainage. The exact scope depends on the van and how it will be used. The itemised quote lists every component and the labour involved before work starts.

  • What happens if I delay getting the plumbing fitted properly?

    A temporary or poorly fitted setup tends to leak at joints that flex with van movement. Water reaching the floor or subframe causes rot and corrosion that costs far more to fix than the original plumbing job. Catching faults before the floor is closed over is the point of the pressure test.

  • Will the system be protected from freezing in cold weather?

    Freeze risk depends on where tanks, pipes, and the pump are positioned. Pipework routed near the van skin or floor without insulation is vulnerable. The converter identifies cold spots at the layout stage and insulates or repositions exposed runs before fitting.

  • Why does van plumbing lose pressure or flow after fitting?

    The most common causes are a weak pump, air in the lines, a loose hosetail connection, or a partial blockage. A pump pressure check before close-up catches most of these. If the issue appears later, the built-in access panels mean the pump and connections can be reached without stripping the interior.

  • Can I use a basic DIY water setup instead?

    A simple setup can work for occasional use, but loose fittings and unsecured pipe runs tend to fail under the vibration of regular driving. Joints that are not double-clipped and hoses that are not fixed to the structure are the most common sources of leaks in self-built systems.

  • How do I know the plumbing layout will suit my van?

    The converter maps the layout to the van’s dimensions, the sink position, and where tanks can be mounted without affecting the centre of gravity. Pipe runs are kept short where possible, and access points are planned in from the start rather than added as an afterthought.

More questions about Van Plumbing System Installation?

Tell Us Your Van & We’ll Arrange a Quote

Describe the van, how you plan to use it, and roughly when you need it. A local converter returns a written, itemised quote within one working day. There is no obligation until you have seen the quote and are happy to go ahead.
